SKU: 10B-2-SNX-NO30-RENOLD
Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
Rs. 6,190.99
Regular price
Sale price
Rs. 6,190.99
Taxes included.
In stock
Price Break
10+
Rs. 5,509.98
19+
Rs. 5,200.43
29+
Rs. 5,138.52
39+
Rs. 5,076.61
49+
Rs. 5,014.70
74+
Rs. 4,952.79
99+
Rs. 4,643.24
199+
Rs. 4,581.33
249+
Rs. 4,519.42
499+
Rs. 4,457.51
999+
Rs. 4,333.69
Description
Description

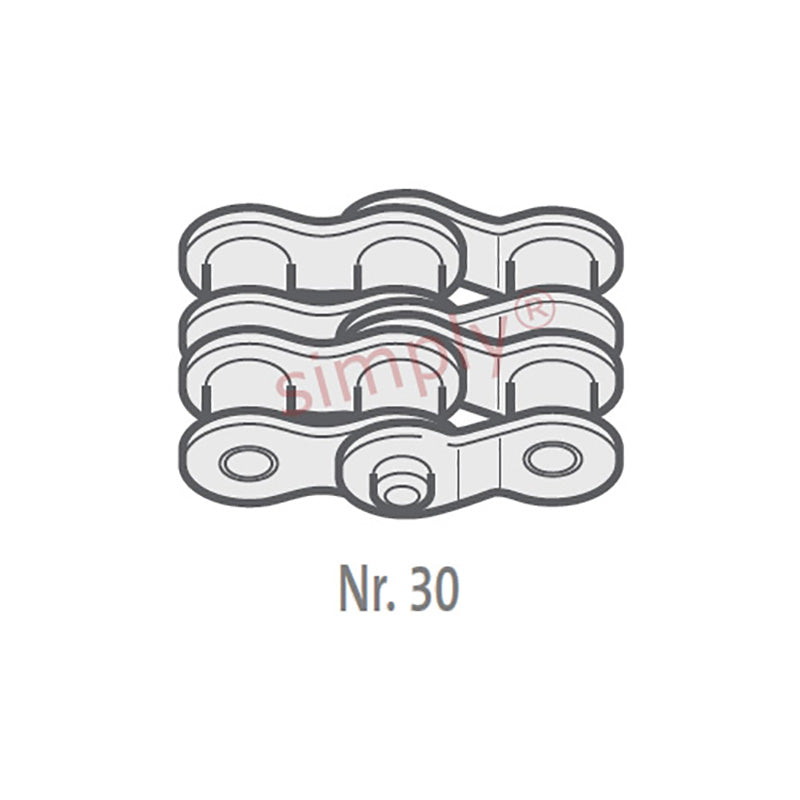

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 35.4mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
