SKU: 10B-2-NO30-MB
Branded 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Branded 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
Rs. 801.40
Regular price
Sale price
Rs. 801.40
Taxes included.
Equivalent to: 10B-2-DOL
In stock
Price Break
10+
Rs. 713.25
19+
Rs. 673.18
29+
Rs. 665.16
39+
Rs. 657.15
49+
Rs. 649.13
74+
Rs. 641.12
99+
Rs. 601.05
199+
Rs. 593.04
249+
Rs. 585.02
499+
Rs. 577.01
999+
Rs. 560.98
Description
Description

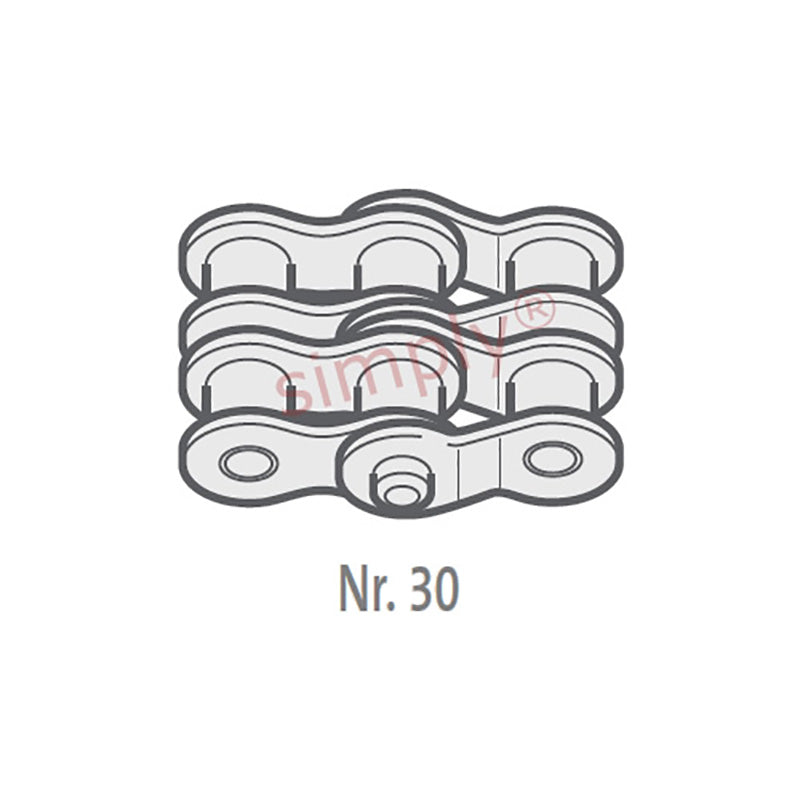

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 10B-2-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 36.2mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
