Branded 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Branded 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
Rs. 526.16
Regular price
Sale price
Rs. 526.16
Taxes included.
Equivalent to: 10B-2-CL
In stock
Price Break
10+
Rs. 468.28
19+
Rs. 441.97
29+
Rs. 436.71
39+
Rs. 431.45
49+
Rs. 426.19
74+
Rs. 420.93
99+
Rs. 394.62
199+
Rs. 389.36
249+
Rs. 384.10
499+
Rs. 378.84
999+
Rs. 368.31
Description
Description

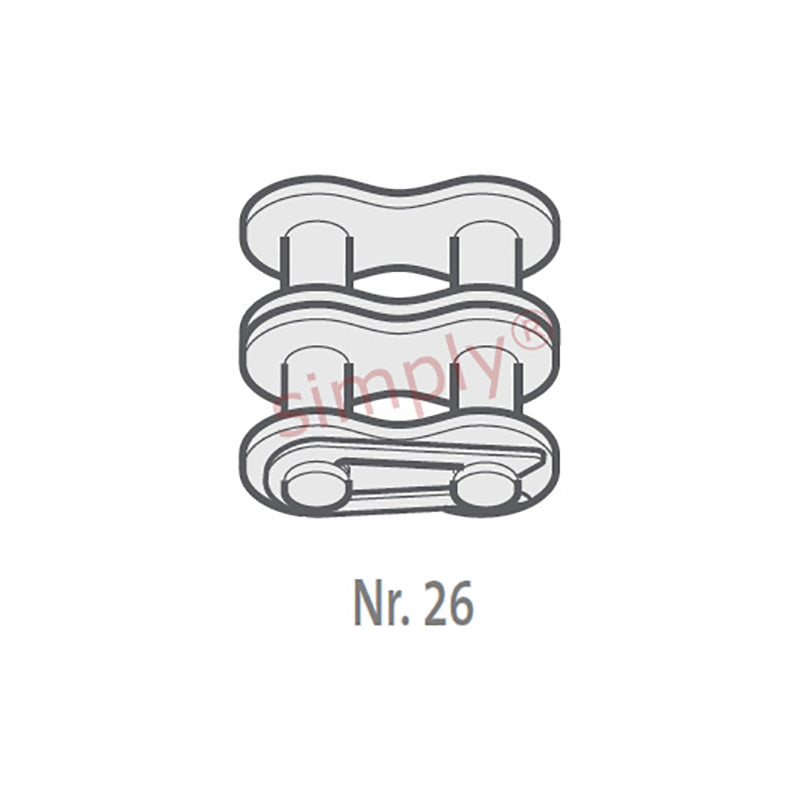

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 10B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 36.2mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
