SKU: 10B-2-BB-NO30-RENOLD
Renold Blue Box 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Renold Blue Box 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
Rs. 2,006.05
Regular price
Sale price
Rs. 2,006.05
Taxes included.
In stock
Price Break
10+
Rs. 1,785.38
19+
Rs. 1,685.08
29+
Rs. 1,665.02
39+
Rs. 1,644.96
49+
Rs. 1,624.90
74+
Rs. 1,604.84
99+
Rs. 1,504.54
199+
Rs. 1,484.48
249+
Rs. 1,464.42
499+
Rs. 1,444.36
999+
Rs. 1,404.24
Description
Description

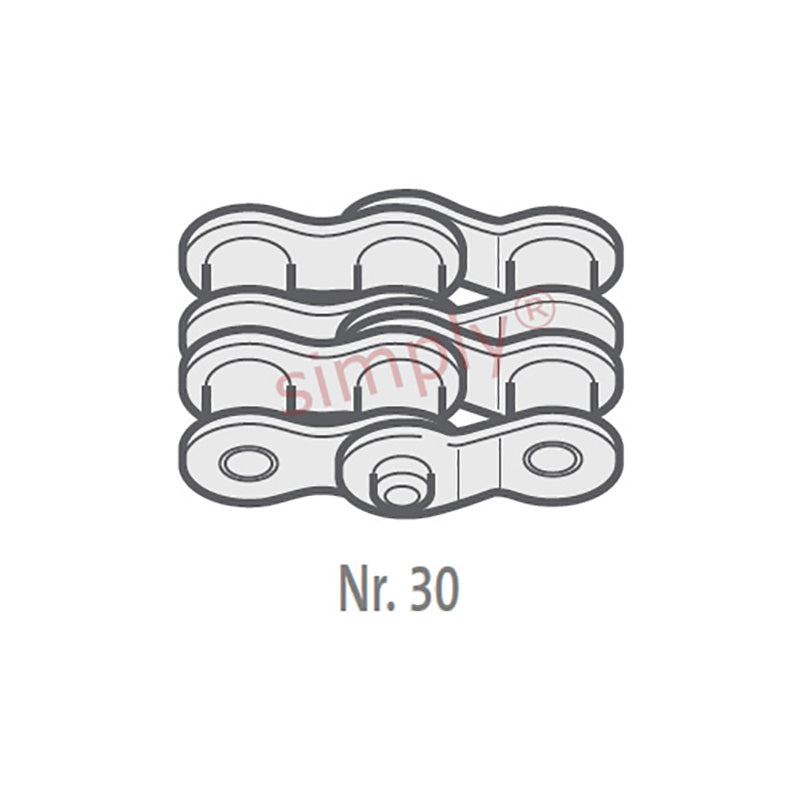

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 35.4mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
