SKU: 1090-3.7/16G-RHP

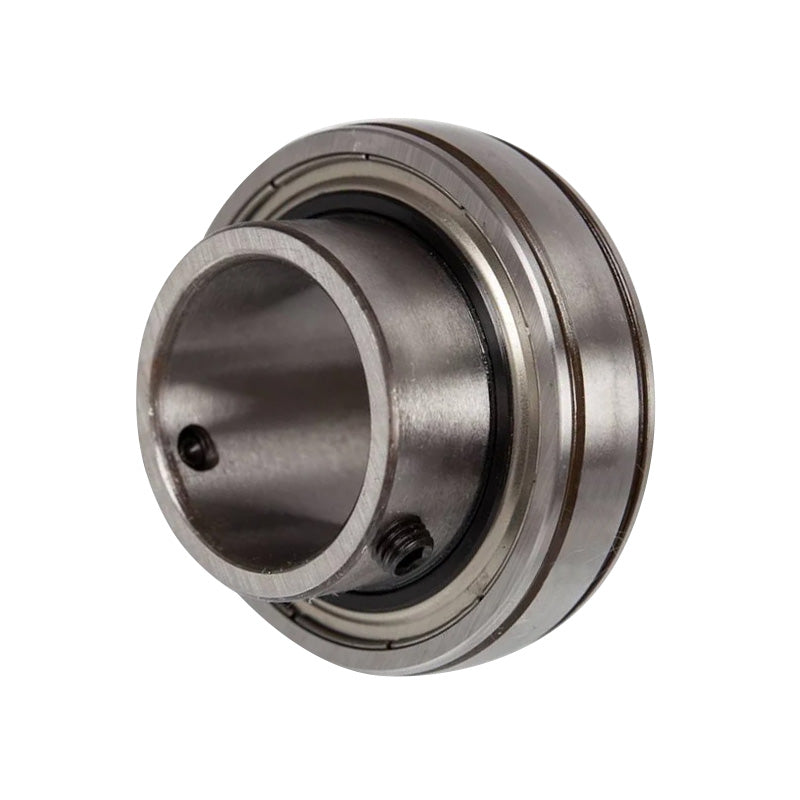

RHP 1090-3-7/16G Spherical Outer Full Width Bearing Insert 3-7/16 inch Bore 160mm Outside Diameter
RHP 1090-3-7/16G Spherical Outer Full Width Bearing Insert 3-7/16 inch Bore 160mm Outside Diameter
Regular price
Rs. 37,426.78
ex VAT
Regular price
Sale price
Rs. 37,426.78
ex VAT
In stock
Price Break
10+
Rs. 33,309.83
19+
Rs. 31,438.50
29+
Rs. 31,064.23
39+
Rs. 30,689.96
49+
Rs. 30,315.69
74+
Rs. 29,941.42
99+
Rs. 28,070.09
199+
Rs. 27,695.82
249+
Rs. 27,321.55
499+
Rs. 26,947.28
999+
Rs. 26,198.75
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Outside Diameter:
- 160mm
- Style:
- 1090
- Type:
- Spherical Outer
Technical
Technical
| Bore | 3-7/16 inch |
|---|---|
| D | 6.2992 inch |
| C | 1.181 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| M | 0.47 inch |
| r | 0.079 inch |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 4.99 kg |
