SKU: 1085-3.7/16G-RHP

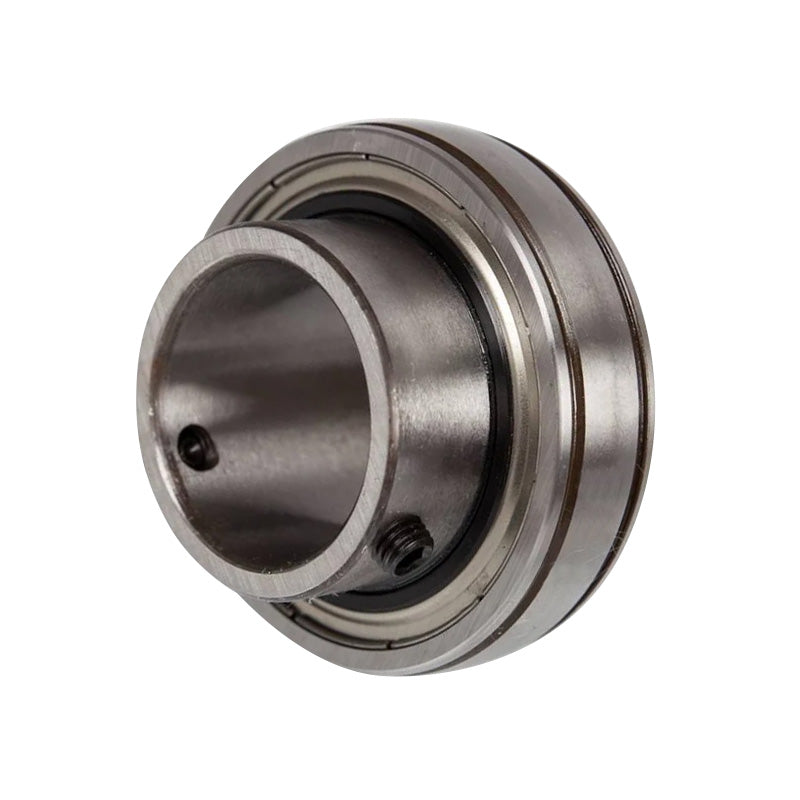

RHP 1085-3-7/16G Spherical Outer Full Width Bearing Insert 3-7/16 inch Bore 150mm Outside Diameter
RHP 1085-3-7/16G Spherical Outer Full Width Bearing Insert 3-7/16 inch Bore 150mm Outside Diameter
Regular price
Rs. 31,292.91
Regular price
Sale price
Rs. 31,292.91
Taxes included.
In stock
Price Break
10+
Rs. 27,850.69
19+
Rs. 26,286.04
29+
Rs. 25,973.12
39+
Rs. 25,660.19
49+
Rs. 25,347.26
74+
Rs. 25,034.33
99+
Rs. 23,469.68
199+
Rs. 23,156.75
249+
Rs. 22,843.82
499+
Rs. 22,530.90
999+
Rs. 21,905.04
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Outside Diameter:
- 150mm
- Style:
- 1085
Technical
Technical

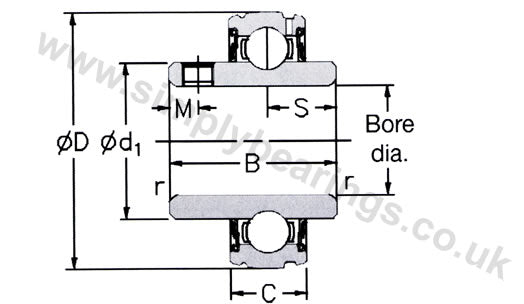

| Bore | 3-7/16 inch |
|---|---|
| D | 5.9055 inch |
| C | 1.102 inch |
| B | 3.375 inch |
| s | 1.346 inch |
| d1 | 4.174 inch |
| M | 0.47 inch |
| r | 0.079 inch |
| Dynamic load Cr | 83000 N |
| Static load Cor | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 3.74 kg |
