SKU: 1045KG-RHP

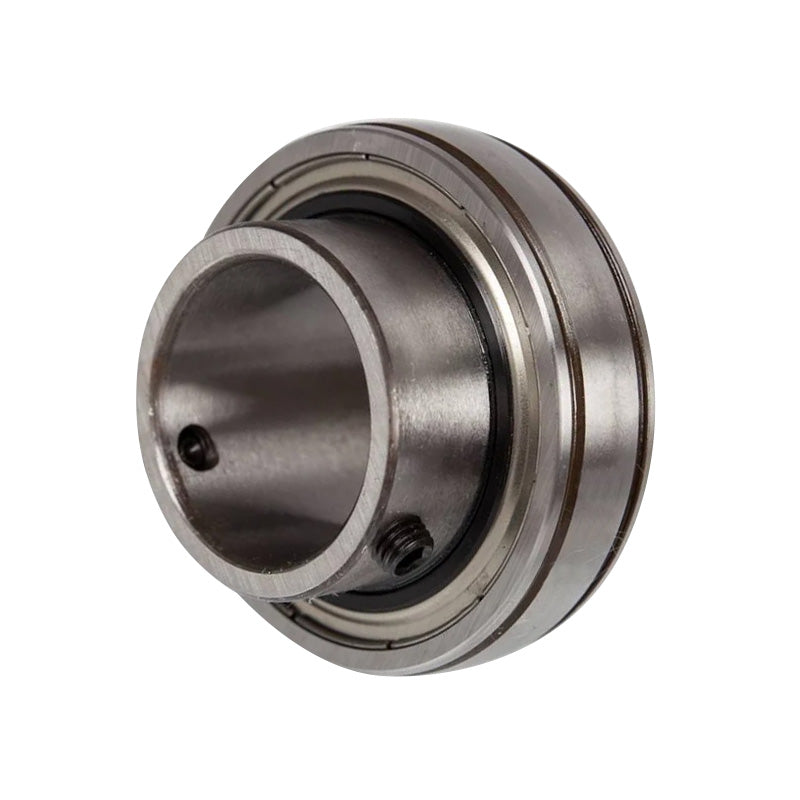

RHP 1045KG Spherical Outer Taper Bore Bearing Insert 40mm 1-7/16 inch 1-1/2 inch Sleeve with 40mm Shaft 85mm Outside Diameter
RHP 1045KG Spherical Outer Taper Bore Bearing Insert 40mm 1-7/16 inch 1-1/2 inch Sleeve with 40mm Shaft 85mm Outside Diameter
Regular price
Rs. 7,353.90
ex VAT
Regular price
Sale price
Rs. 7,353.90
ex VAT
In stock
Price Break
10+
Rs. 6,544.97
19+
Rs. 6,177.28
29+
Rs. 6,103.74
39+
Rs. 6,030.20
49+
Rs. 5,956.66
74+
Rs. 5,883.12
99+
Rs. 5,515.43
199+
Rs. 5,441.89
249+
Rs. 5,368.35
499+
Rs. 5,294.81
999+
Rs. 5,147.73
Couldn't load pickup availability
Description
Description
|
RHP 1100K Series: Taper bore bearing insert with parallel outer race. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. you will need a taper sleeve (available separately) this makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 85mm
- Style:
- 1045
- Type:
- Spherical Outer
Technical
Technical
| Bore | 40mm |
|---|---|
| D | 85mm |
| C | 19mm |
| B4 | -mm |
| B5 | 39mm |
| B6 | -mm |
| d | 45mm |
| d1 | 57.3mm |
| d4 | 65mm |
| r | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.64 kg |
| Useable taper sleeve | <a href="advanced_search_result.php?keywords=H309+tapersleeve">H309 Click Here</a> |
