SKU: 1045-40G-RHP

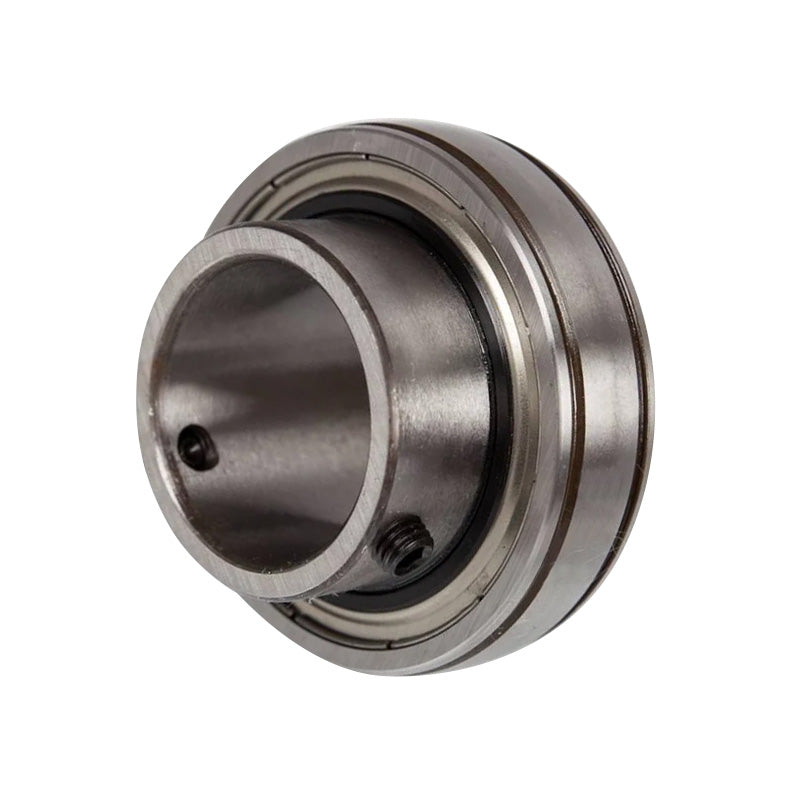

RHP 1045-40G Spherical Outer Full Width Bearing Insert 40mm Bore 85mm Outside Diameter
RHP 1045-40G Spherical Outer Full Width Bearing Insert 40mm Bore 85mm Outside Diameter
Regular price
Rs. 5,577.16
ex VAT
Regular price
Sale price
Rs. 5,577.16
ex VAT
In stock
Price Break
10+
Rs. 4,963.67
19+
Rs. 4,684.81
29+
Rs. 4,629.04
39+
Rs. 4,573.27
49+
Rs. 4,517.50
74+
Rs. 4,461.73
99+
Rs. 4,182.87
199+
Rs. 4,127.10
249+
Rs. 4,071.33
499+
Rs. 4,015.56
999+
Rs. 3,904.01
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 85mm
- Style:
- 1045
- Type:
- Spherical Outer
Technical
Technical
| Bore | 40mm |
|---|---|
| D | 85mm |
| C | 19mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| M | 7.95mm |
| r | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.73 kg |
