SKU: 1030-1.1/8DECG-RHP

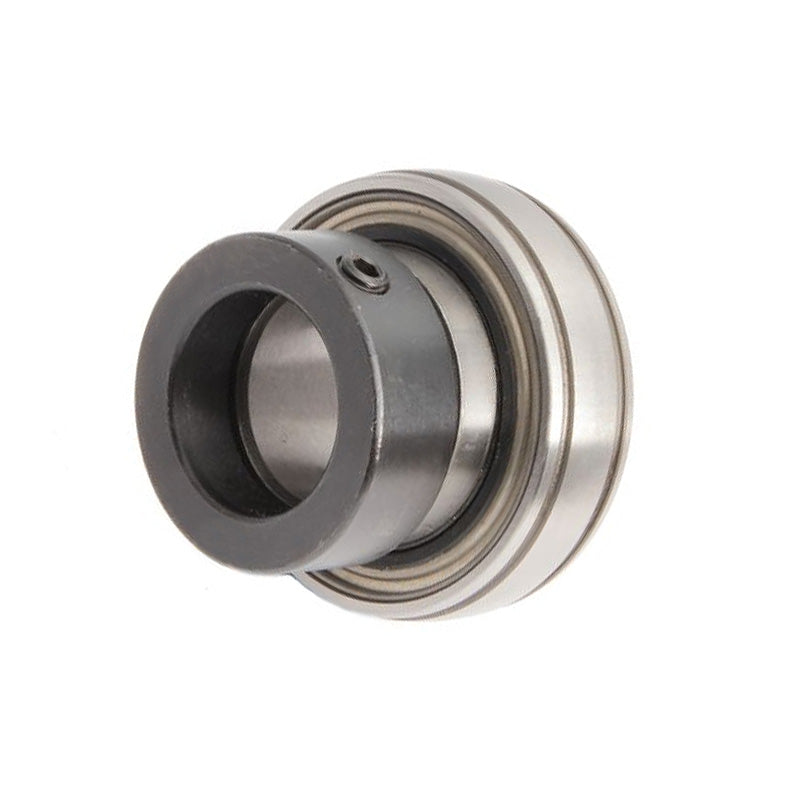

RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
Regular price
Rs. 4,838.86
ex VAT
Regular price
Sale price
Rs. 4,838.86
ex VAT
In stock
Price Break
10+
Rs. 4,306.59
19+
Rs. 4,064.64
29+
Rs. 4,016.25
39+
Rs. 3,967.87
49+
Rs. 3,919.48
74+
Rs. 3,871.09
99+
Rs. 3,629.15
199+
Rs. 3,580.76
249+
Rs. 3,532.37
499+
Rs. 3,483.98
999+
Rs. 3,387.20
Couldn't load pickup availability
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Style:
- 1030
- Type:
- Spherical Outer
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.63 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.53 kg |
