SKU: 1025KG-RHP

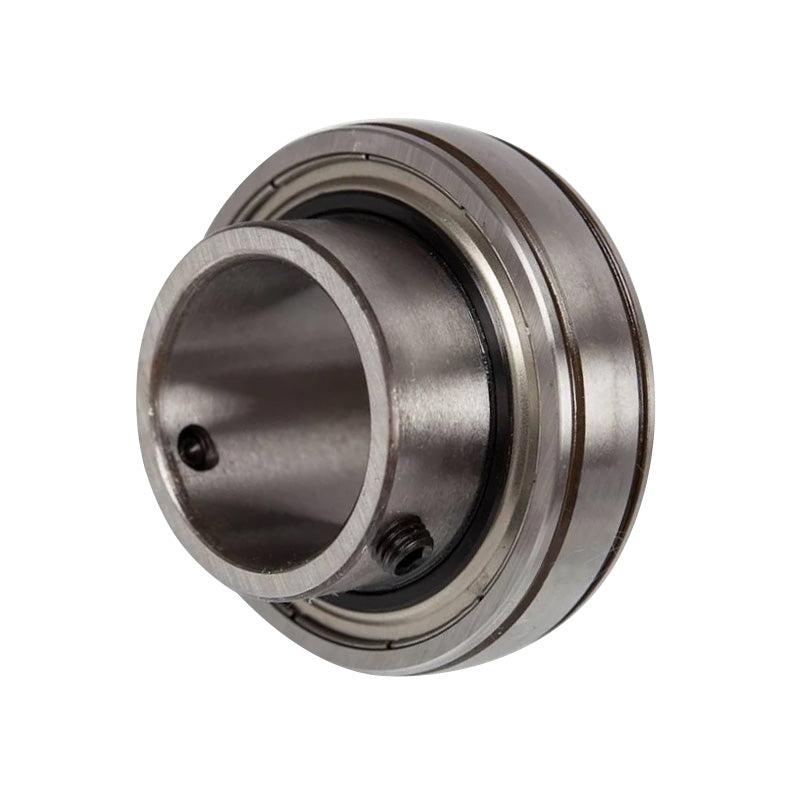

RHP 1025KG Spherical Outer Taper Bore Bearing Insert 20mm 3/4 inch Sleeve with 20mm Shaft 52mm Outside Diameter
RHP 1025KG Spherical Outer Taper Bore Bearing Insert 20mm 3/4 inch Sleeve with 20mm Shaft 52mm Outside Diameter
Regular price
Rs. 2,845.57
ex VAT
Regular price
Sale price
Rs. 2,845.57
ex VAT
In stock
Price Break
10+
Rs. 2,532.56
19+
Rs. 2,390.28
29+
Rs. 2,361.82
39+
Rs. 2,333.37
49+
Rs. 2,304.91
74+
Rs. 2,276.46
99+
Rs. 2,134.18
199+
Rs. 2,105.72
249+
Rs. 2,077.27
499+
Rs. 2,048.81
999+
Rs. 1,991.90
Couldn't load pickup availability
Description
Description
|
RHP 1100K Series: Taper bore bearing insert with parallel outer race. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. you will need a taper sleeve (available separately) this makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Style:
- 1025
- Type:
- Spherical Outer
Technical
Technical
| Bore | 20mm |
|---|---|
| D | 52mm |
| C | 15mm |
| B4 | -mm |
| B5 | 29mm |
| B6 | -mm |
| d | 25mm |
| d1 | 34.01mm |
| d4 | 38mm |
| r | 1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7800 N |
| Rec max speed | 6250 rpm |
| Weight | 0.2 kg |
| Useable taper sleeve | <a href="advanced_search_result.php?keywords=H305+tapersleeve">H305 Click Here</a> |
