SKU: 1025-3/4KG-RHP

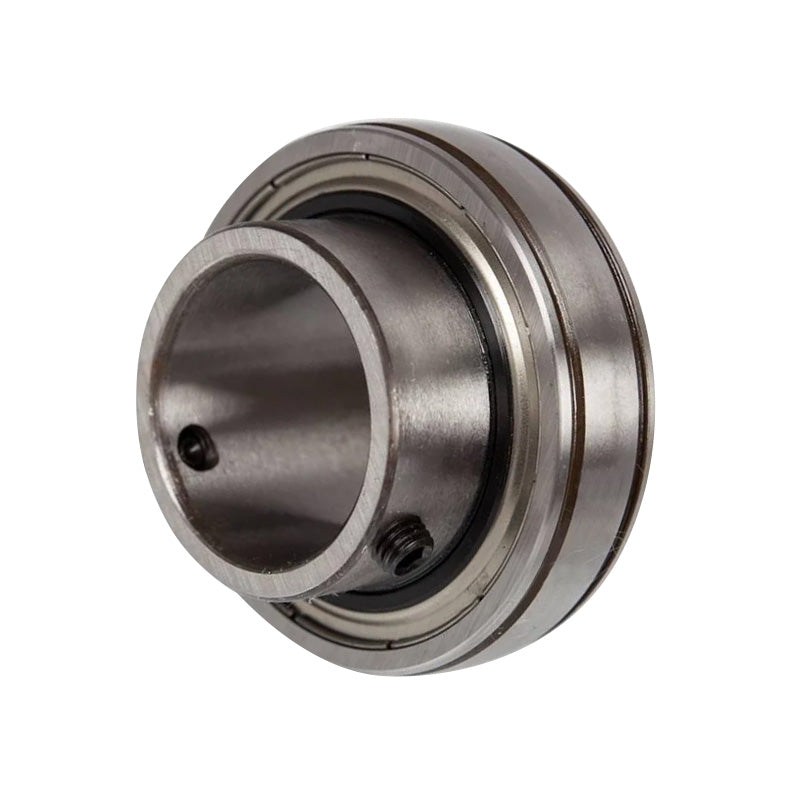

RHP 1025-3/4KG Spherical Outer Taper Bore Bearing Insert and H305-3/4 Sleeve with 3/4 inch Shaft 52mm Outside Diameter
RHP 1025-3/4KG Spherical Outer Taper Bore Bearing Insert and H305-3/4 Sleeve with 3/4 inch Shaft 52mm Outside Diameter
Regular price
Rs. 5,494.85
ex VAT
Regular price
Sale price
Rs. 5,494.85
ex VAT
In stock
Price Break
10+
Rs. 4,890.42
19+
Rs. 4,615.67
29+
Rs. 4,560.73
39+
Rs. 4,505.78
49+
Rs. 4,450.83
74+
Rs. 4,395.88
99+
Rs. 4,121.14
199+
Rs. 4,066.19
249+
Rs. 4,011.24
499+
Rs. 3,956.29
999+
Rs. 3,846.40
Couldn't load pickup availability
Description
Description
|
RHP 1000 KG Series: Taper bore bearing insert with spherical outer race and taper sleeve, lock washer and lock nut to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. The taper sleeve supplied makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 52mm
- Style:
- 1025
- Type:
- Spherical Outer
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| D | 2.0472mm |
| C | 0.591mm |
| B4 | 0.748mm |
| B5 | 1.142mm |
| B6 | 0.315mm |
| d | 0.9843mm |
| d1 | 1.339mm |
| d4 | 1.496mm |
| r | 0.039mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7800 N |
| Rec max speed | 6250 rpm |
| Weight | 0.2 kg |
| Supplied sleeve | H305-3/4 |
