Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
Rs. 1,163.69
Regular price
Sale price
Rs. 1,163.69
Taxes included.
Equivalent to: 100-2-CL-COT 100-2-CL
In stock
Price Break
10+
Rs. 1,035.68
19+
Rs. 977.50
29+
Rs. 965.86
39+
Rs. 954.23
49+
Rs. 942.59
74+
Rs. 930.95
99+
Rs. 872.77
199+
Rs. 861.13
249+
Rs. 849.49
499+
Rs. 837.86
999+
Rs. 814.58
Description
Description

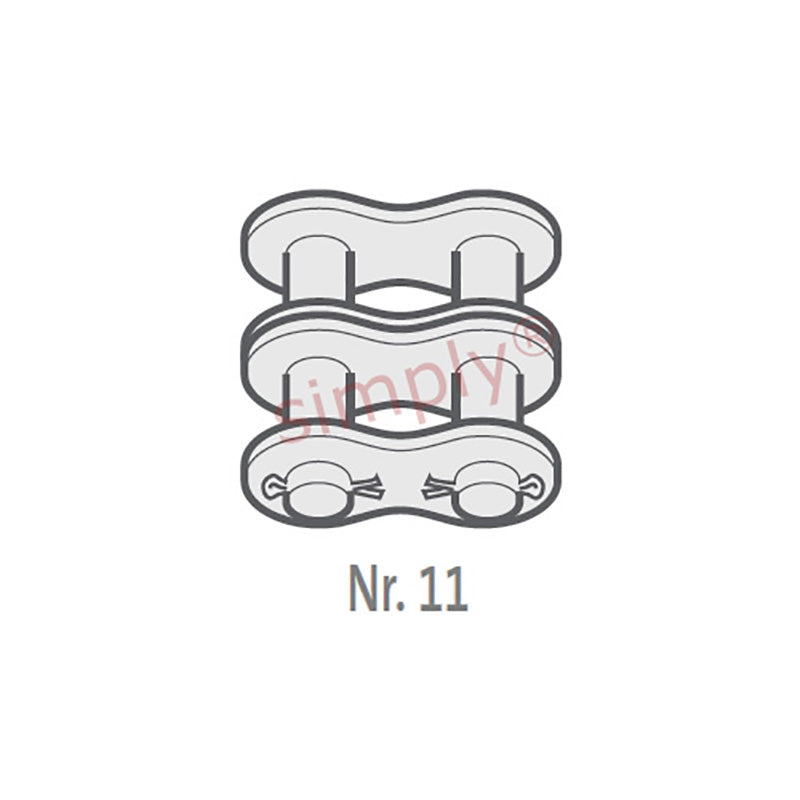

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 100-2-CL-COT 100-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H2) | 76.2mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 0.08kg/m |
