SKU: 1/4X19-BSPT-90A-KF

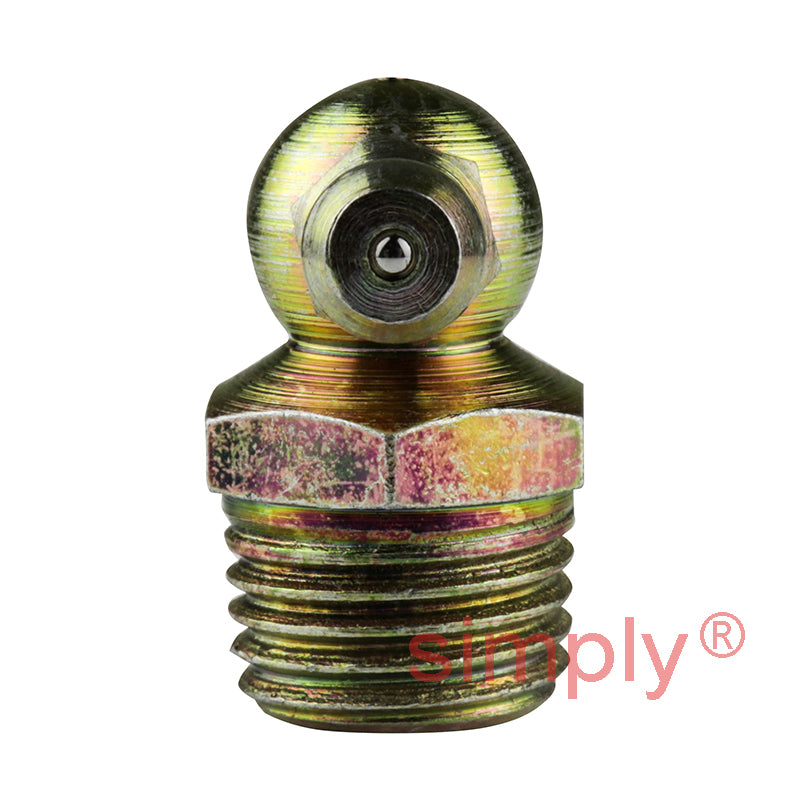

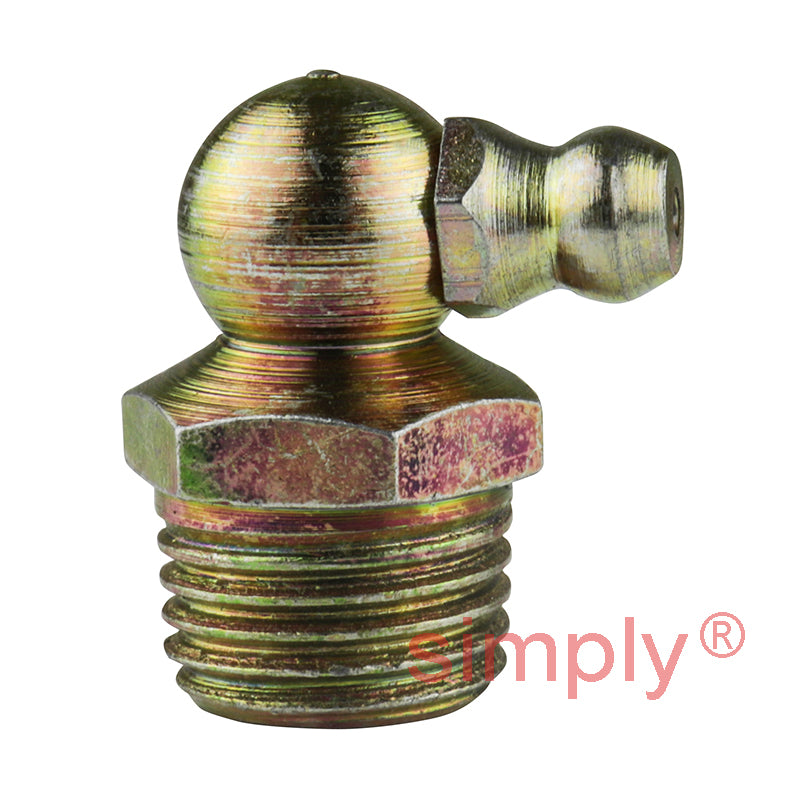

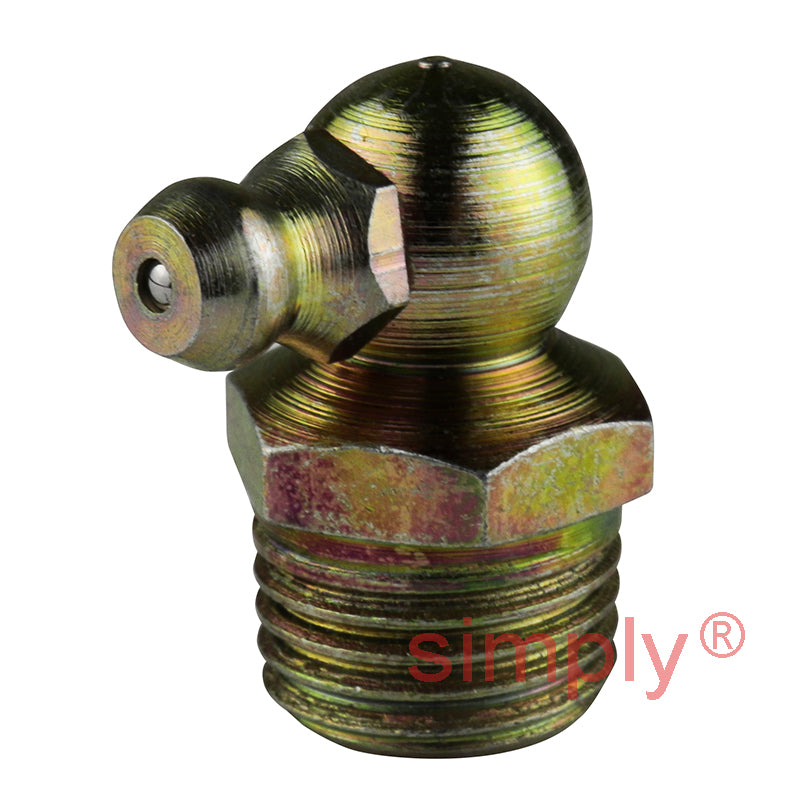

1/4x19 BSPT Hardened Mild Steel Zinc Plated 90 deg Hydraulic Grease Nipples
1/4x19 BSPT Hardened Mild Steel Zinc Plated 90 deg Hydraulic Grease Nipples
Regular price
Rs. 152.34
Regular price
Sale price
Rs. 152.34
Taxes included.
In stock
Price Break
5+
Rs. 106.64
10+
Rs. 91.40
20+
Rs. 83.79
50+
Rs. 76.17
100+
Rs. 60.94
500+
Rs. 53.32
1000+
Rs. 45.70
Description
Description
Hydraulic Grease Nipple Fittings: Kingfisher superior hydraulic fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. The head is made with an annular groove in the plain portion. They are made with a unique mechanical joint for a leak-proof fit. Amongst our range of grease fittings there are fittings of different size, thread type and with or without angles.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- BSPT 1/4x19
- Thread Length:
- 8.64mm = 0.34 inch
- Length:
- 23.37mm = 0.92 inch
- Angle:
- 90 deg
Technical
Technical
| --- | BSPT Thread (British Standard Pipe Tapered) |
|---|---|
| Recommended To Fit | BSPT 1/4x19 |
| Total Length A | 23.37mm = 0.92 inch |
| Thread Length B | 8.64mm = 0.34 inch |
| Swing Distance C | 12.7mm = 0.5 inch |
| Nipple Angle | 90 deg |
| Required Tool Size (Hex Size) | 14mm |
| Weight | 0.018 kg |
