SKU: 08B-3-NO26-MB

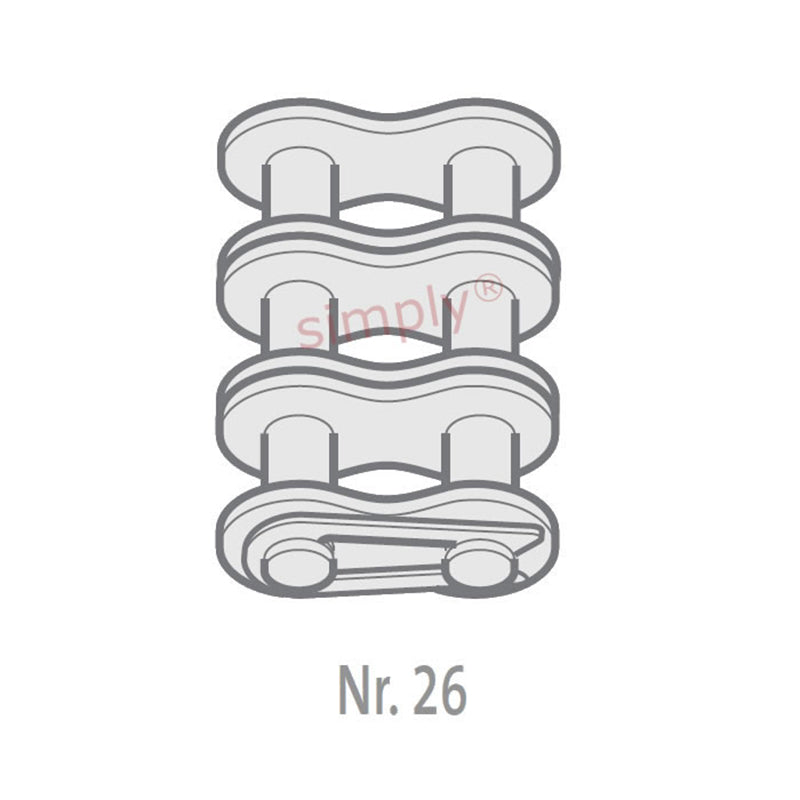

Branded 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Branded 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
Rs. 556.88
Regular price
Sale price
Rs. 556.88
Taxes included.
Equivalent to: 08B-3-CL
In stock
Price Break
10+
Rs. 495.62
19+
Rs. 467.78
29+
Rs. 462.21
39+
Rs. 456.64
49+
Rs. 451.07
74+
Rs. 445.50
99+
Rs. 417.66
199+
Rs. 412.09
249+
Rs. 406.52
499+
Rs. 400.95
999+
Rs. 389.82
Description
Description
Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 08B-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H3) | 44.9mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 51150 N |
| Weight | 0.009kg/m |
