SKU: 08B-3-NO12-MB
Branded 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Branded 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
Rs. 751.47
Regular price
Sale price
Rs. 751.47
Taxes included.
Equivalent to: 08B-3-OL
In stock
Price Break
10+
Rs. 668.81
19+
Rs. 631.23
29+
Rs. 623.72
39+
Rs. 616.21
49+
Rs. 608.69
74+
Rs. 601.18
99+
Rs. 563.60
199+
Rs. 556.09
249+
Rs. 548.57
499+
Rs. 541.06
999+
Rs. 526.03
Description
Description

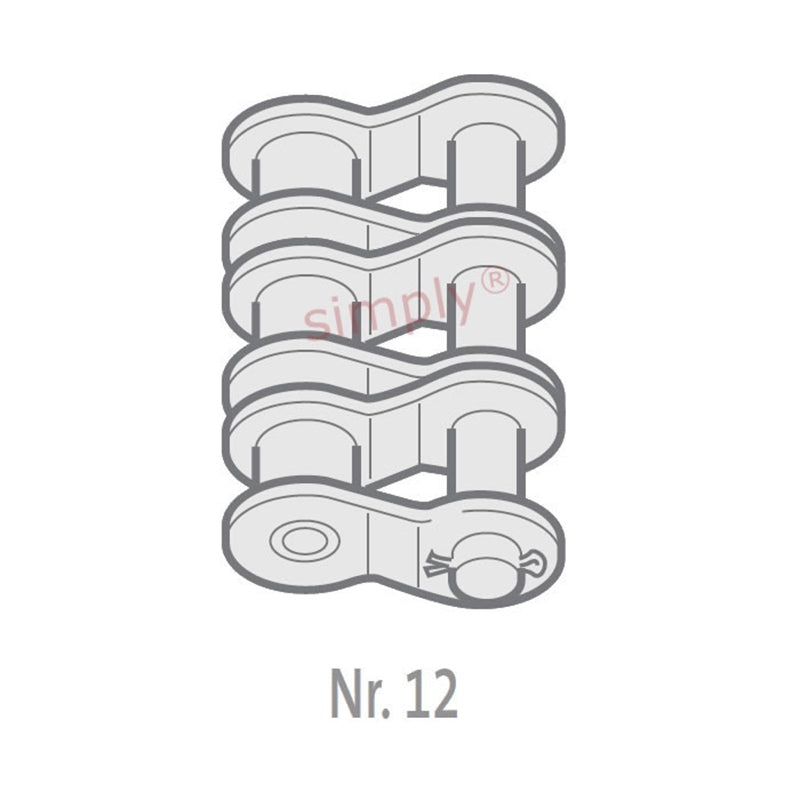

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 08B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H3) | 44.9mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 51150 N |
| Weight | 0.009kg/m |
