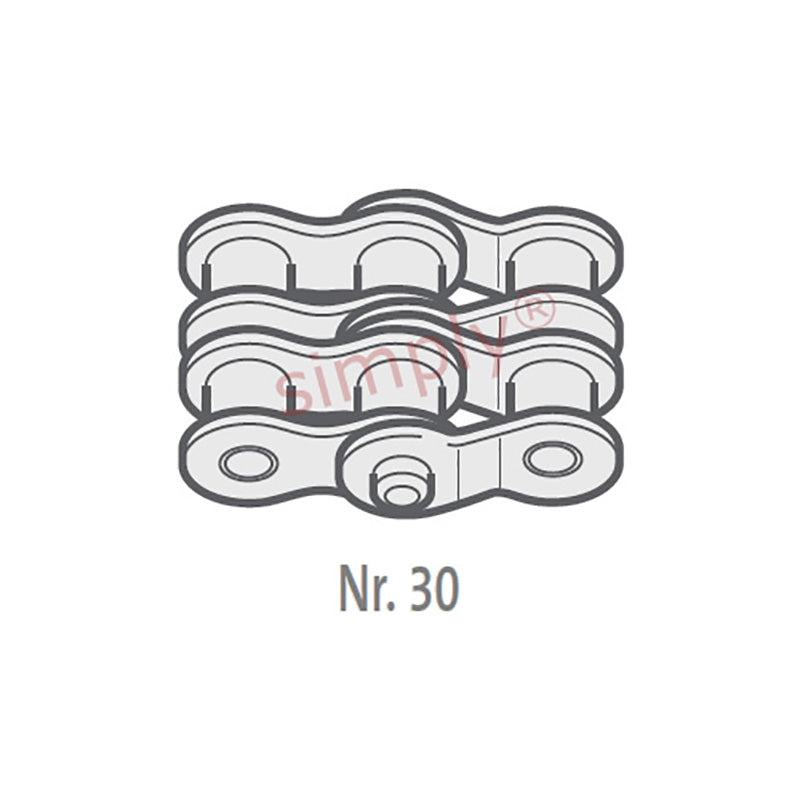

Branded 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
Branded 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
Rs. 821.88
Regular price
Sale price
Rs. 821.88
Taxes included.
Equivalent to: 08B-2-DOL
In stock
Price Break
10+
Rs. 731.47
19+
Rs. 690.38
29+
Rs. 682.16
39+
Rs. 673.94
49+
Rs. 665.72
74+
Rs. 657.50
99+
Rs. 616.41
199+
Rs. 608.19
249+
Rs. 599.97
499+
Rs. 591.75
999+
Rs. 575.32
Description
Description
Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 08B-2-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 31mm |
| Connecting Link Extension max (J) | 1.1mm |
| Transverse Pitch nom (K) | 13.92mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
