SKU: 06B-3-NO12-MB

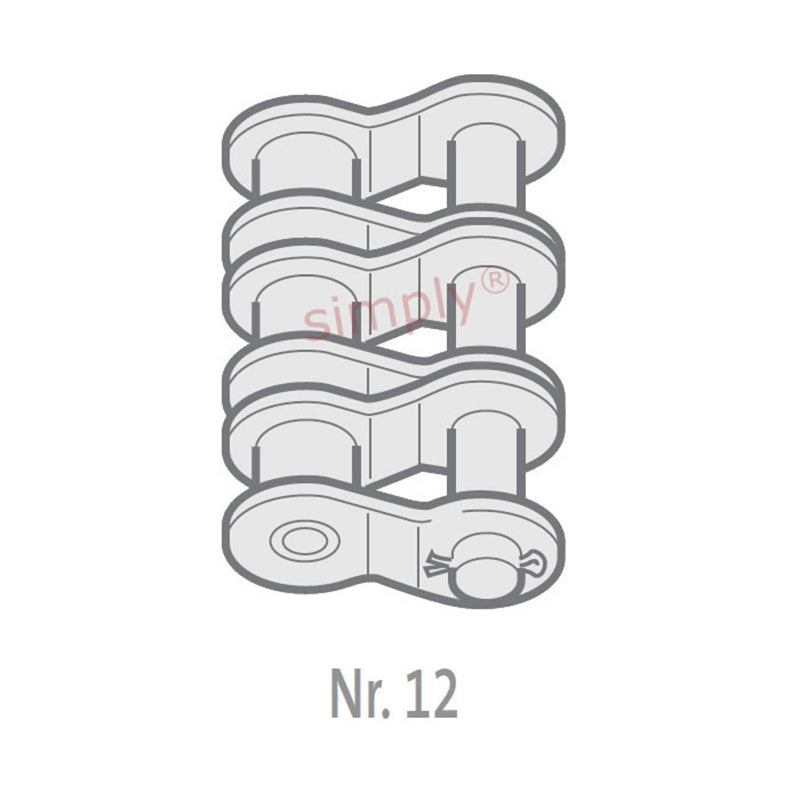

Major Brand 06B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Major Brand 06B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Regular price
Rs. 660.58
Regular price
Sale price
Rs. 660.58
Taxes included.
Equivalent to: 06B-3-OL
In stock
Price Break
10+
Rs. 587.92
19+
Rs. 554.89
29+
Rs. 548.28
39+
Rs. 541.68
49+
Rs. 535.07
74+
Rs. 528.46
99+
Rs. 495.44
199+
Rs. 488.83
249+
Rs. 482.22
499+
Rs. 475.62
999+
Rs. 462.41
Description
Description
Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 06B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H3) | 35.6mm |
| Connecting Link Extension max (J) | 3mm |
| ISO606 Tensile Strength min | 26250 N |
| Weight | 0.003kg/m |
