SKU: 06B-2-SD-NO26-RENOLD
Renold SD 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold SD 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
Rs. 635.57
ex VAT
Regular price
Sale price
Rs. 635.57
ex VAT
In stock
Price Break
10+
Rs. 565.66
19+
Rs. 533.88
29+
Rs. 527.52
39+
Rs. 521.17
49+
Rs. 514.81
74+
Rs. 508.46
99+
Rs. 476.68
199+
Rs. 470.32
249+
Rs. 463.97
499+
Rs. 457.61
999+
Rs. 444.90
Couldn't load pickup availability
Description
Description

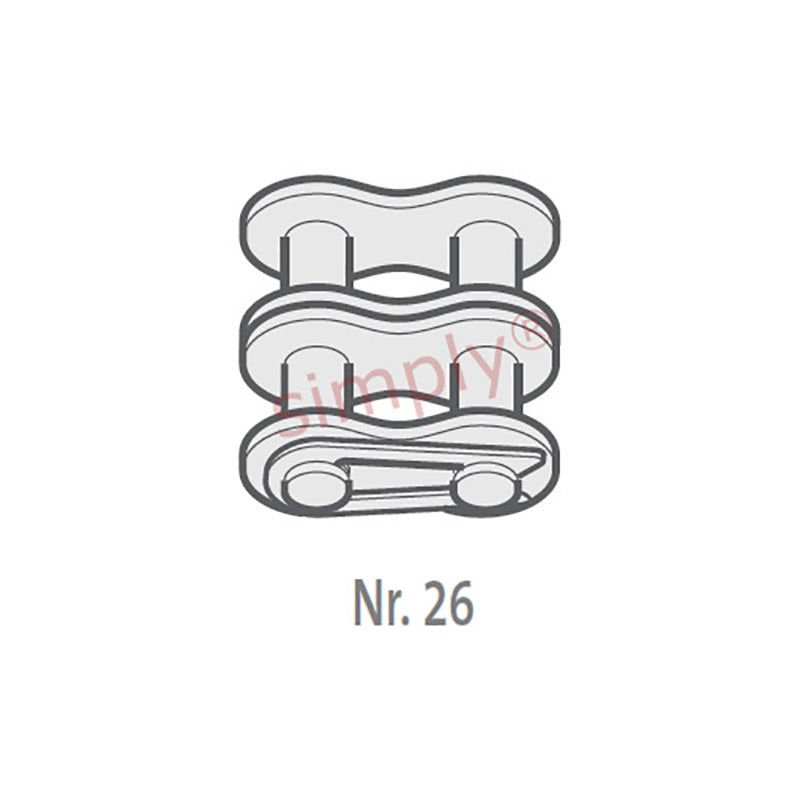

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H2) | 23.5mm |
| Connecting Link Extension max (J) | 1mm |
| Transverse Pitch nom (K) | 10.24mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
