SKU: 06B-2-BB-NO26-RENOLD
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
Rs. 1,104.90
ex VAT
Regular price
Sale price
Rs. 1,104.90
ex VAT
In stock
Price Break
10+
Rs. 983.36
19+
Rs. 928.12
29+
Rs. 917.07
39+
Rs. 906.02
49+
Rs. 894.97
74+
Rs. 883.92
99+
Rs. 828.68
199+
Rs. 817.63
249+
Rs. 806.58
499+
Rs. 795.53
999+
Rs. 773.43
Couldn't load pickup availability
Description
Description

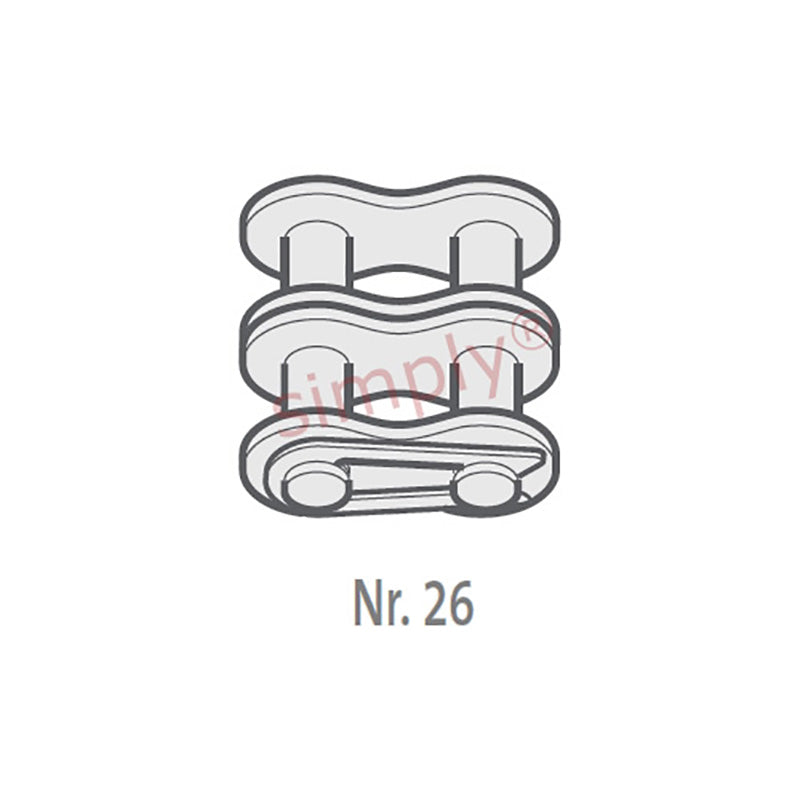

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 23mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
