SKU: 05B-2-NO26-MB
Major Brand 05B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 8mm Pitch
Major Brand 05B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 8mm Pitch
Regular price
Rs. 542.80
Regular price
Sale price
Rs. 542.80
Taxes included.
Equivalent to: 05B-2-CL
In stock
Price Break
10+
Rs. 483.09
19+
Rs. 455.95
29+
Rs. 450.52
39+
Rs. 445.10
49+
Rs. 439.67
74+
Rs. 434.24
99+
Rs. 407.10
199+
Rs. 401.67
249+
Rs. 396.24
499+
Rs. 390.82
999+
Rs. 379.96
Description
Description

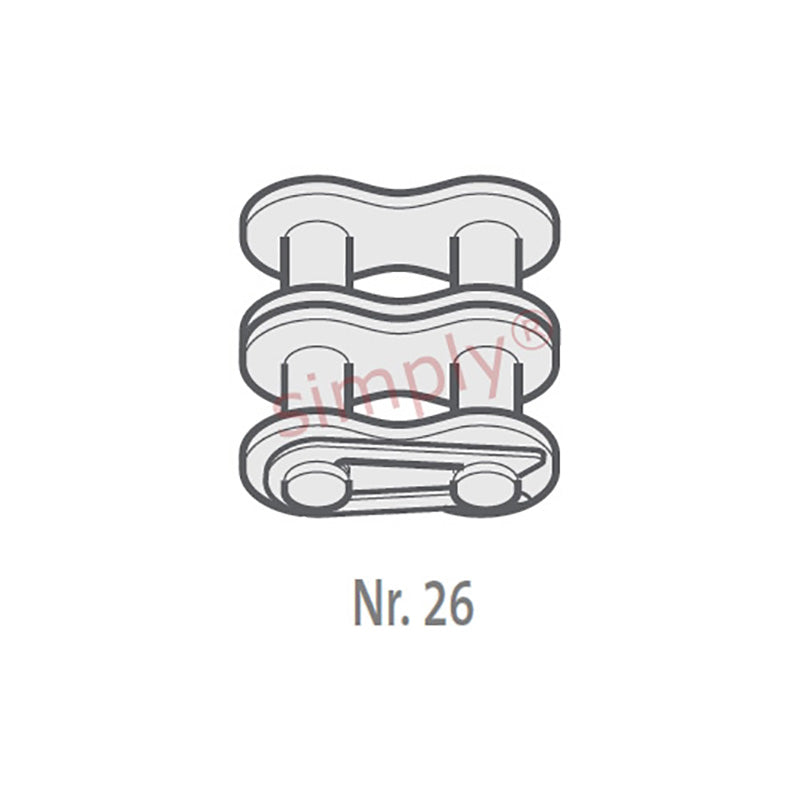

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 05B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 8mm
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 8mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.76mm |
| Plate Width Outer max (F) | 0.76mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H2) | 14.3mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 5.64mm |
| ISO606 Tensile Strength min | 7800 N |
| Weight | 0.36kg/m |
