SKU: 02474/02420.B-TIM

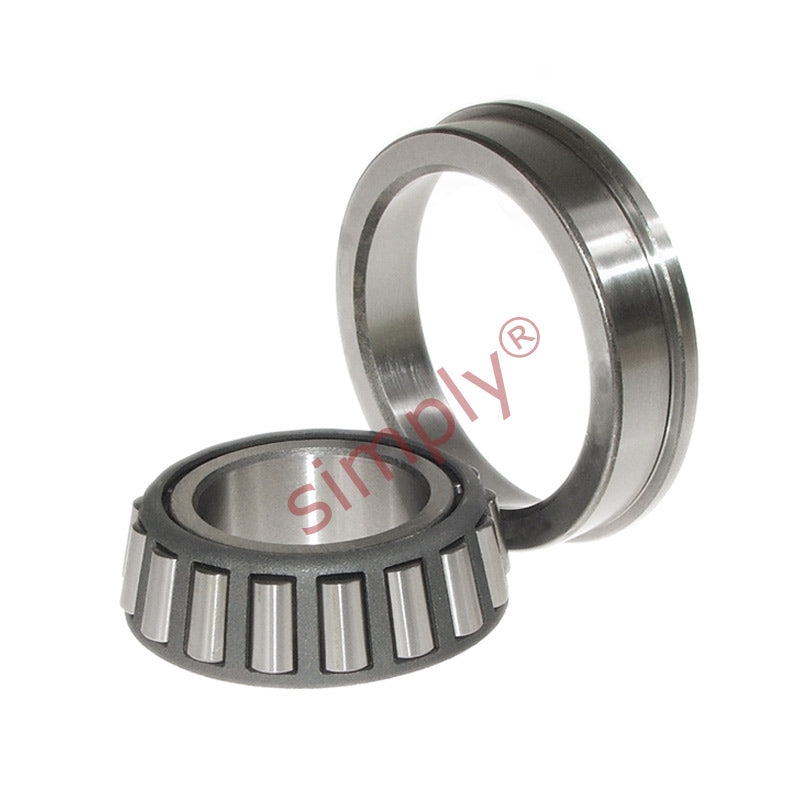

Timken 02474/02420B Imperial Taper Roller Bearing Cup and Cone Set 1.125x2.6875x0.875 inch
Timken 02474/02420B Imperial Taper Roller Bearing Cup and Cone Set 1.125x2.6875x0.875 inch
Regular price
Rs. 15,834.64
Regular price
Sale price
Rs. 15,834.64
Taxes included.
In stock
Price Break
10+
Rs. 14,092.83
19+
Rs. 13,301.10
29+
Rs. 13,142.75
39+
Rs. 12,984.40
49+
Rs. 12,826.06
74+
Rs. 12,667.71
99+
Rs. 11,875.98
199+
Rs. 11,717.63
249+
Rs. 11,559.29
499+
Rs. 11,400.94
999+
Rs. 11,084.25
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| Cup | 02420B |
|---|---|
| Cone | 02474 |
| Inside diameter | 1.125 inch (28.58mm) |
| Outside diameter | 2.6875 inch (68.26mm) |
| Cone width | 0.8750 inch (22.225mm) |
| Cup width | 0.6875 inch (17.4625mm) |
| Bearing width | 0.875 inch (22.23mm) |
