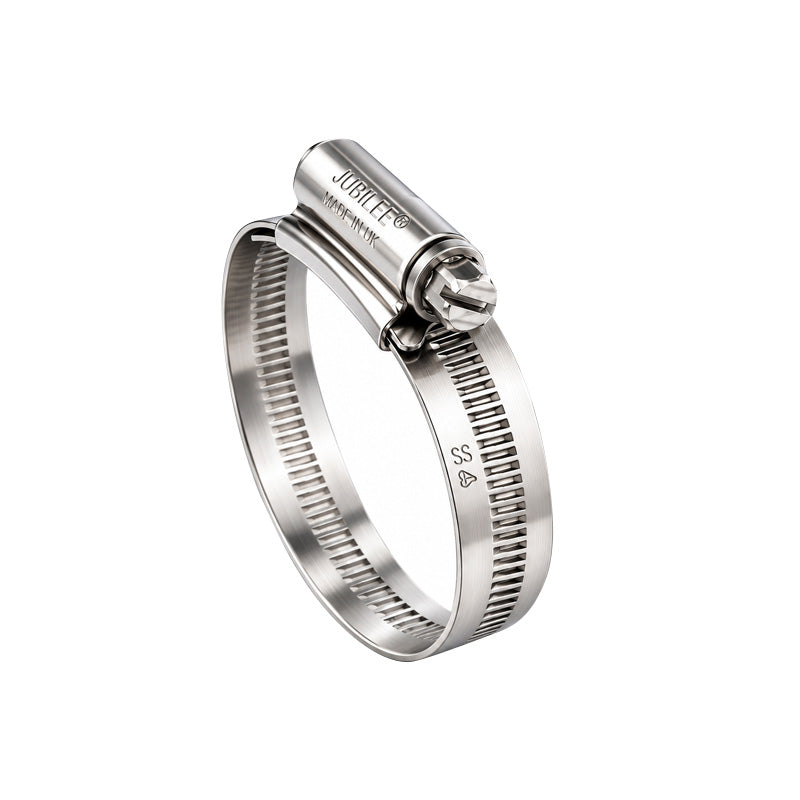

00SS 304 Stainless Steel Original Jubilee Clip Adjustment Range 13mm-20mm Band Width 9.9mm
00SS 304 Stainless Steel Original Jubilee Clip Adjustment Range 13mm-20mm Band Width 9.9mm
Regular price
Rs. 455.92
ex VAT
Regular price
Sale price
Rs. 455.92
ex VAT
In stock
Price Break
5+
Rs. 319.14
10+
Rs. 273.55
20+
Rs. 250.76
50+
Rs. 227.96
100+
Rs. 182.37
500+
Rs. 159.57
1000+
Rs. 136.78
Couldn't load pickup availability
Description
Description
304 Stainless Steel Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 9.9mm
- Min Adjustment Range:
- 13mm
- Max Adjustment Range:
- 20mm
Technical
Technical
| BS No. | 20 |
|---|---|
| Adjustment Range | 13mm - 20mm |
| Adjustment Range | 1/2 - 3/4 inch |
| Band Width (+/- 0.1) | 9.9mm |
| Band Thickness (+/- 0.1) | 0.762mm |
| Recommended Torque | 3.4Nm |
| Maximum Torque | 4.5Nm |
| Maximum Pressure | 203 Psi |
